Expanded metal mesh (JIS standard) models XS and XG: strong and seamless.

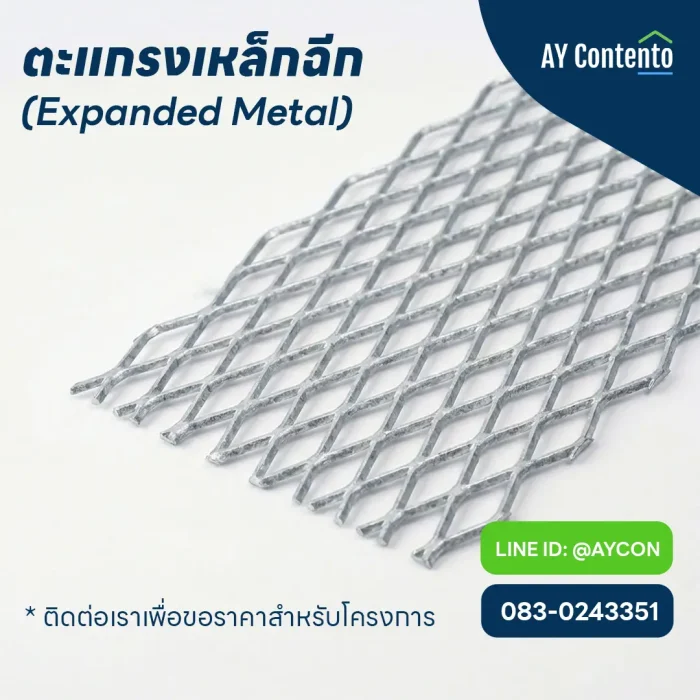

expanded metal mesh or Expanded Metal It is a very popular material nowadays, made from... Black steel sheet High-quality material is processed through machinery that simultaneously slits and stretches it, creating a beautiful and orderly diamond-shaped mesh.
The most outstanding feature is that “"Superior strength to woven wire mesh."” Because the structure is made from a single piece of steel (One Piece Construction), with no welds that could cause breakage, it can withstand heavy loads exceptionally well, especially the extra-thick (XG) model.
Standard size
- Sheet size: 4×8 feet (1,220 x 2,440 mm)
- Various models: 27 models to meet different needs
Why choose expanded metal mesh from AY Contento?
- Safety & Non-Slip: The ridges of the grating are beveled, increasing friction (grip) and preventing slips. It is suitable for outdoor walkways or fire escape stairs.
- Ventilation (Air/Light): The grille allows for good air circulation and light penetration, making the space feel airy and less cramped, and reducing wind resistance.
- Lightweight: Compared to solid steel sheets of the same area, expanded metal mesh is significantly lighter, reducing the structural load on the building.
- Versatility (Stylish Design): Suitable for both heavy-duty (industrial) and decorative (architectural) applications, giving a modern, raw, and edgy Industrial Loft look.
Product model details
Standard series (NO., S-, G-)
-
- NO.1
-
- S-6
-
- S-18
-
- G-1
-
- G-5
-
- G-10
model | Gap width (mm) | Channel length (mm) | Thickness (mm) | Ridge (mm) | Weight (kg) |
NO.1 | 10.0 | 20.0 | 1.2 | 8.0 | 10.40 |
S-6 | 24.0 | 40.7 | 2.3 | 3.0 | 12.80 |
S-18 | 30.0 | 151.0 | 2.3 | 3.0 | 10.80 |
G-1 | 23.0 | 122.0 | 3.2 | 7.0 | 43.30 |
G-5 | 9.0 | 44.0 | 1.6 | 1.8 | 14.90 |
G-10 | 15.0 | 50.0 | 1.6 | 5.0 | 24.80 |
XS (Extra Small Opening) model group
-
- XS-31, XS-32, XS-33
-
- XS-34, XS-35, XS-36
-
- XS-41, XS-42, XS-43
-
- XS-51, XS-52, XS-53
-
- XS-61, XS-62, XS-63
-
- XS-71, XS-72, XS-73
model | Gap width (mm) | Channel length (mm) | Thickness (mm) | Ridge (mm) | Weight (kg) |
XS-31 | 12.0 | 30.5 | 1.2 | 1.5 | 7.01 |
XS-32 | 12.0 | 30.5 | 1.6 | 2.0 | 12.50 |
XS-33 | 12.0 | 30.5 | 2.3 | 3.0 | 26.80 |
XS-34 | 15.0 | 30.5 | 1.2 | 1.5 | 5.60 |
XS-35 | 15.0 | 30.5 | 1.6 | 2.0 | 10.00 |
XS-36 | 15.0 | 30.5 | 2.3 | 3.0 | 19.46 |
XS-41 | 22.0 | 50.8 | 1.6 | 2.0 | 6.78 |
XS-42 | 22.0 | 50.8 | 2.3 | 2.5 | 12.20 |
XS-43 | 22.0 | 50.8 | 3.2 | 3.5 | 23.80 |
XS-51 | 25.0 | 61.0 | 1.6 | 2.5 | 7.46 |
XS-52 | 25.0 | 61.0 | 2.3 | 3.0 | 12.90 |
XS-53 | 25.0 | 61.0 | 3.2 | 4.0 | 23.90 |
XS-61 | 34.0 | 76.2 | 2.3 | 3.0 | 9.48 |
XS-62 | 34.0 | 76.2 | 3.2 | 4.0 | 17.60 |
XS-63 | 34.0 | 76.2 | 4.5 | 5.0 | 30.90 |
XS-71 | 50.0 | 152.4 | 2.3 | 3.5 | 7.52 |
XG (Extra Heavy) model group
-
- XG-11, XG-12, XG-13
-
- XG-21, XG-22, XG-23
model | Gap width (mm) | Channel length (mm) | Thickness (mm) | Ridge (mm) | Weight (kg) |
XG-11 | 34.0 | 135.4 | 4.5 | 7.0 | 43.40 |
XG-12 | 34.0 | 135.4 | 6.0 | 7.0 | 57.90 |
XG-13 | 34.0 | 135.4 | 6.0 | 9.0 | 74.50 |
XG-21 | 36.0 | 101.6 | 4.5 | 7.0 | 41.00 |
XG-22 | 36.0 | 101.6 | 6.0 | 7.0 | 54.70 |
XG-23 | 36.0 | 101.6 | 6.0 | 9.0 | 69.60 |
Usage characteristics (categorized by popular models)
- Models XS-31, 32, 33 (small eyes): Suitable for making bird nets, ceilings, building facades, furniture, and baskets.
- Models XS-41, 42, 43 (middle eye): (Popular model) Suitable for use as fences, balcony railings, room dividers, and small raised floors.
- Models XS-51, 52, 53 (large/thick eyes): Suitable for walkways, fire escape stairs, and manhole covers.
- XG model (extra thick): Suitable for very heavy-duty applications such as factory floors, roadways, and bridge decks.
Table of popular models and specifications (Standard Models)
(Selected only the best-selling models and those frequently requested by customers)
Model | Mesh size (mm) width x length | Thickness (mm) | Mesh ridge diameter (mm) | Usage recommendations |
XS-31 | 12 x 30.5 | 1.2 | 1.5 | Bird netting, decoration, furniture. |
XS-32 | 12 x 30.5 | 1.6 | 2.0 | Room partition, transparent fence |
XS-41 | 22 x 50.8 | 1.6 | 2.0 | Fence, railing (budget-friendly) |
XS-42 | 22 x 50.8 | 2.3 | 2.5 | (Bestseller) House fence, factory fence |
XS-43 | 22 x 50.8 | 3.2 | 3.5 | Walkway (short beam span) |
XS-51 | 25 x 61.0 | 1.6 | 2.5 | Large fence, sunshade panel |
XS-52 | 25 x 61.0 | 2.3 | 3.0 | Anti-theft fence |
XS-53 | 25 x 61.0 | 3.2 | 4.0 | (Bestseller) Standard walkway |
XS-63 | 34 x 76.2 | 4.5 | 5.0 | The walkway is subject to heavy loads. |
XG-11 | 34 x 76.2 | 4.5 | 6.0 | Manhole covers, heavy-duty factory floor coverings. |
(Standard sheet size: 4x8 ft / 1219 x 2438 mm)
Frequently Asked Questions (FAQ)
For safety reasons, we recommend models with a thickness of 3.2 mm or more, such as: XS-43, XS-53, XS-63 Or model? XG It depends on the spacing of the support beams. The further apart the beams are, the thicker the mesh needs to be used.
The most popular model is: XS-42 Yes, because the eye size is just right (not too close together, not too far apart) and the thickness is perfect—strong but not too heavy—making it look light and comfortable to the eye.
Sure, I can do that. We highly recommend it for outdoor use to prevent rust. We offer a hot-dip galvanizing service (additional charges and processing time apply), or you can choose to purchase the black steel version and paint it yourself.
""Unsure which model to choose? Or need a quote?""
Send us your layout or area dimensions, and we'll help you calculate it. The AY Contento team is ready to assist you.
🟢 Line: @aycon
📞 Tel: 083-0243351
🚚 Delivery service: We deliver standard sheets to job sites throughout Thailand.
