10 mm wire mesh – the ultimate in strength, equivalent to DB12 reinforcing steel.
""Innovative alternatives to deformed steel bars for national infrastructure projects.""
Wire mesh size 10 millimeters This is the largest model in the standard product range (before moving on to custom-made products). Its size offers comparable strength to... Deformed steel bars The 12 mm (DB12) size is the primary standard for large-scale construction projects, but offers superior advantages in terms of speed and accuracy during installation.
10mm wire mesh is the answer for Mega Projects:
Suitable for civil engineering projects requiring it. Maximum Load Capacity:
- Airport runway: Areas that must withstand the impact of takeoff and landing of large commercial aircraft.
- Dam and dike construction projects: Concrete structures that must withstand immense water pressure and compressive forces.
- Bridges and expressways: The concrete bridge deck must withstand the weight of high-speed trucks.
- Deep sea port floor: Capable of supporting large gantry cranes.
A clear comparison: 10mm wire mesh vs. DB12 deformed steel bar.
Why are large projects starting to switch from DB12 wire mesh to 10mm wire mesh?
- Higher Yield Strength: Wire mesh is manufactured from cold-rolled wire and has a minimum yield strength of 5,500 ksc, while... Reinforcing steel bar grade SD40 With a value of only 4,000 ksc, it makes sense in engineering terms. 10mm wire mesh can withstand forces equal to or better than DB12. (When calculating the appropriate steel cross-section)
- Zero Waste: deformed bar Often there's waste from 5-10% wire mesh, but 10mm wire mesh can be custom-made to perfectly fit the concrete pouring area, leaving no waste.
- Reduce the workforce of 80%: Laying rebar over an area of 1,000 square meters might require 10-15 workers to tie the rebar for several days. However, using wire mesh panels, a crane can be used to lift and place the panels, and only 3-4 people are needed to adjust the spacing, completing the job in a single day.
Technical and transportation specifications.
- Product type: Sold as ""Flat Sheet type" only. It cannot be rolled up due to the hardness of the steel.
- Transportation: Only flatbed trailers can be used for transportation, and a crane or tower crane must be available at the site to unload the goods.
- Lapping: Designing steel bar overlap is easier and more economical than overlapping deformed steel bars.

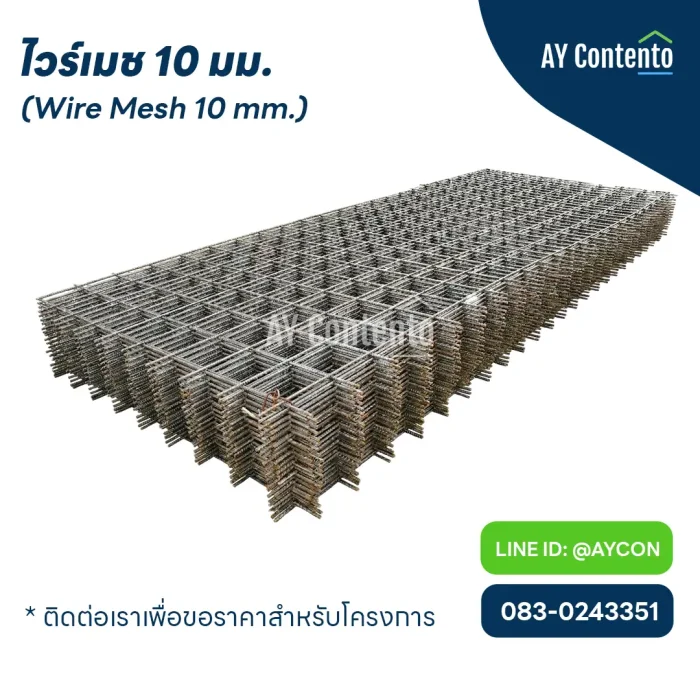

Specifications: 10 mm wire mesh
| feature | details |
| Wire diameter | 10.0 millimeters (full) |
| Sieve spacing | @10, @15, @20, @25 cm (Manufactured according to engineer's specifications) |
| Usage patterns | Panel type (Flat Sheet Only) |
| Maximum width x length | Width 3.5 m x Length 10-12 m (depending on transportation) |
| Production standards | TIS 737-2006, ASTM A185 |
| Yield Strength | Minimum 5,500 ksc (High Tensile) |
Frequently Asked Questions about 10mm Wire Mesh (FAQ)
answer: In theory, it's possible, and it's quite common. However, a structural engineer must approve the material change beforehand. This approval should compensate for the smaller cross-sectional area using the higher yield strength of the wire mesh. (We have steel specification documents available for your consideration.)
answer: Yes, you can order it. We also offer crane truck unloading services, but the price will be higher than unloading it yourself because 10mm wire mesh panels are very heavy (each panel can weigh several hundred kilograms). Lifting them manually is impossible and very dangerous.
answer: As these are custom-made products for specific projects, production time depends on the workload and quantity. Typically, it takes approximately 7-14 days.
See other types of steel products >>
Turn difficult tasks into easy ones with our 10mm wire mesh solution.
Reduce costs, save time, but don't compromise on quality. Consult the AY Contento team. To change the specification from deformed steel bars to... 10 mm wire mesh. In a proper engineering manner.
